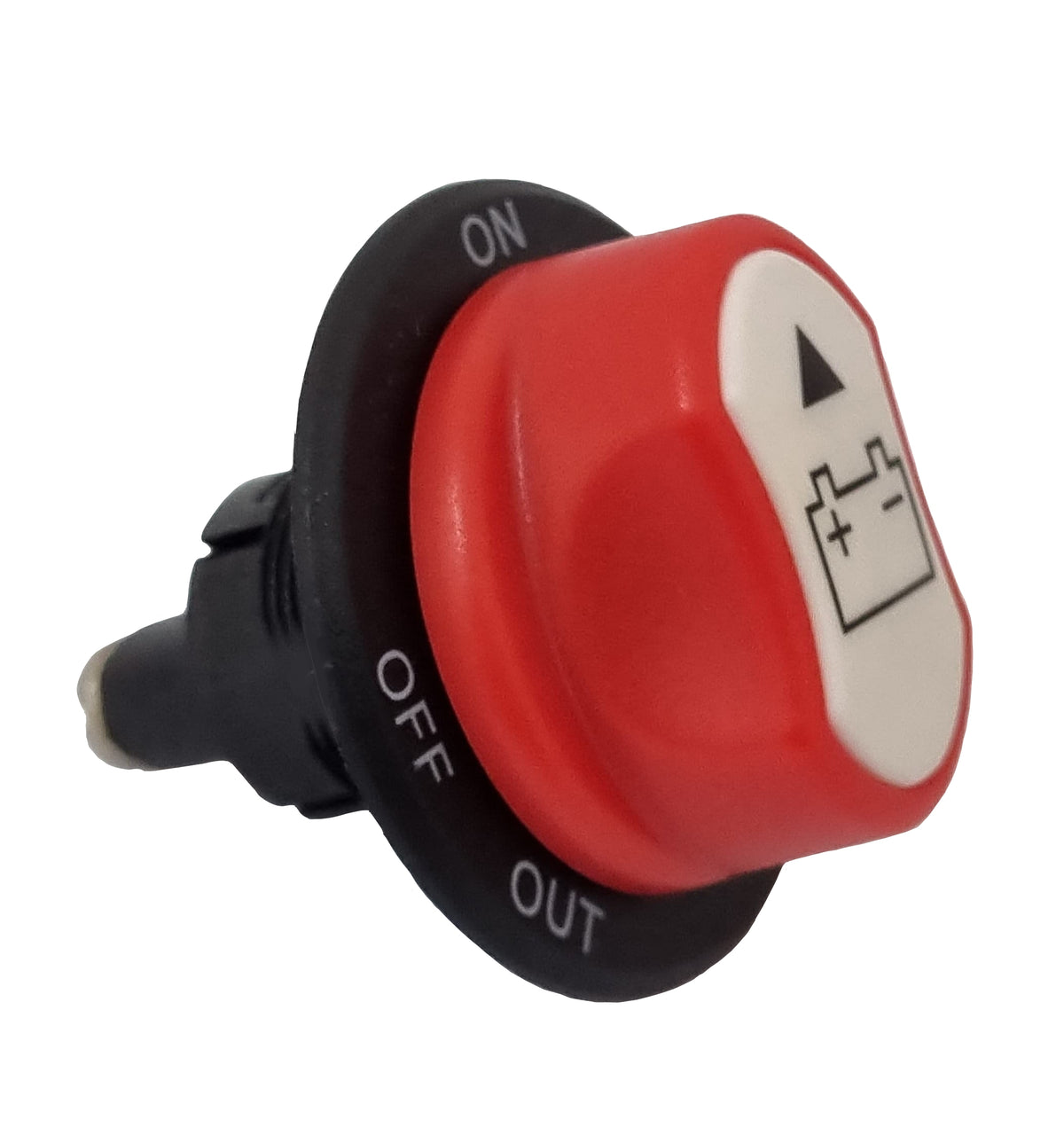

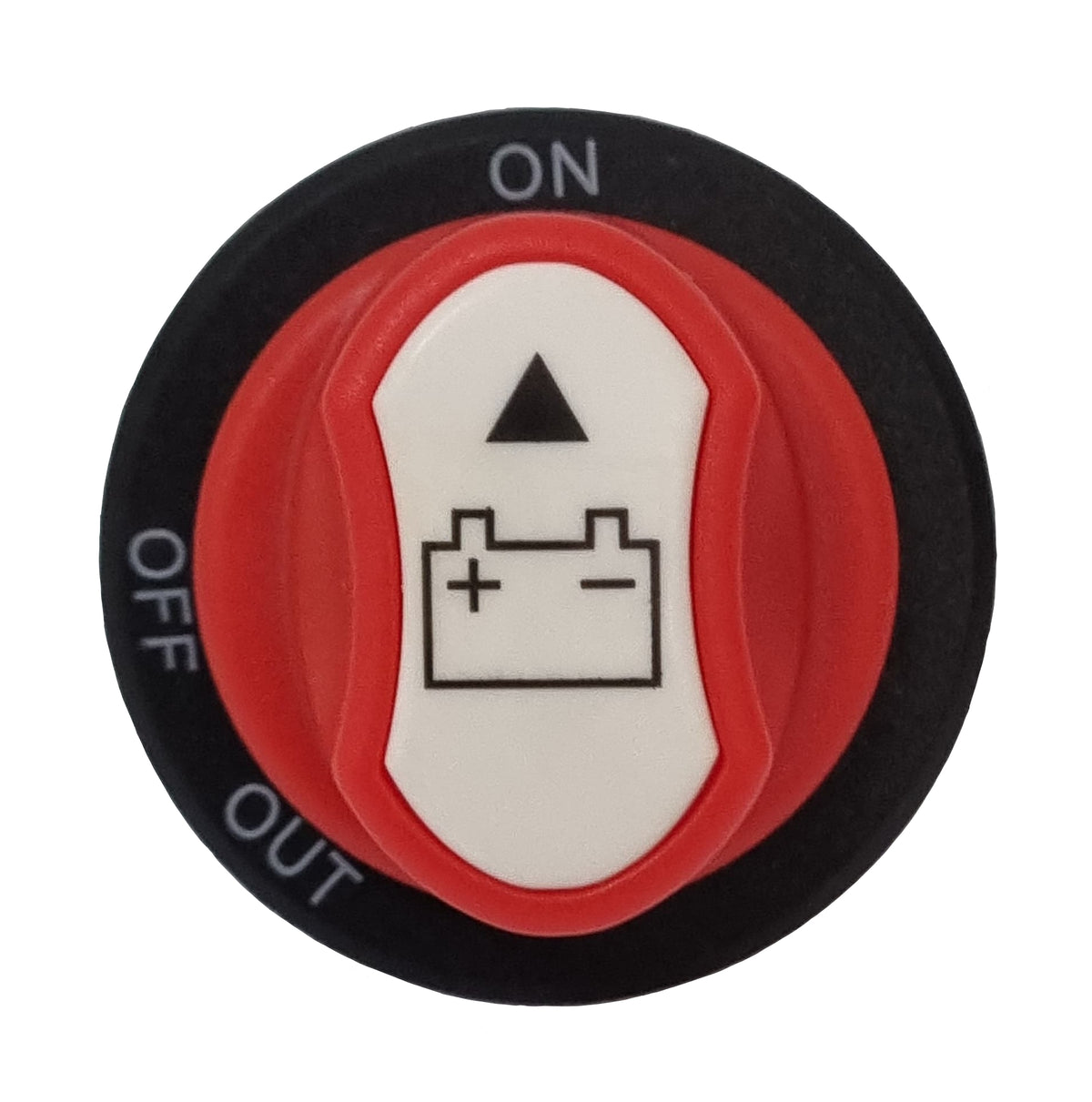

50A Battery Kill Switch

50A Battery Kill Switch

• Continuous Rating: 50A  Amps 50VDC Max.     1

• Cranking Rating: 50A(300Amps 5 sec)       10

• Intermittent rating: 50A(75Amps)

• Contact Resistance: 50m ohm Max

• Insulation Resistance: DC 500V 100M ohm Min

• Dielectric Strength: AC 1000V 1 minute, DC 2000V 1 minute

• Operation Temperature: -30℃ ～+60℃

• Switch Function: 2P SPST OFF-ON

• Manufacturer Part Number: 12VNation-1180

• Material: ABS

• Color: black + red
