Feature:

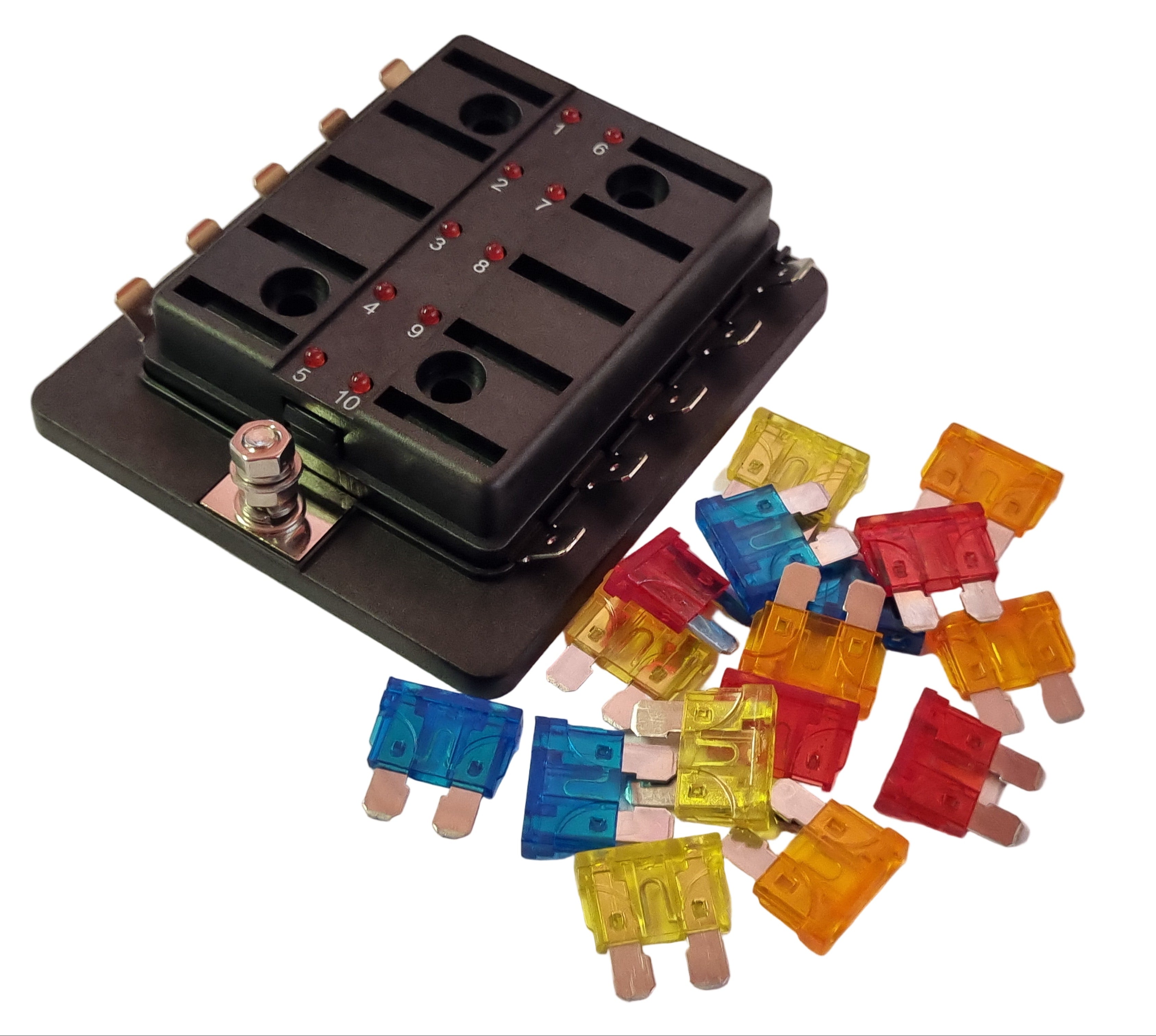

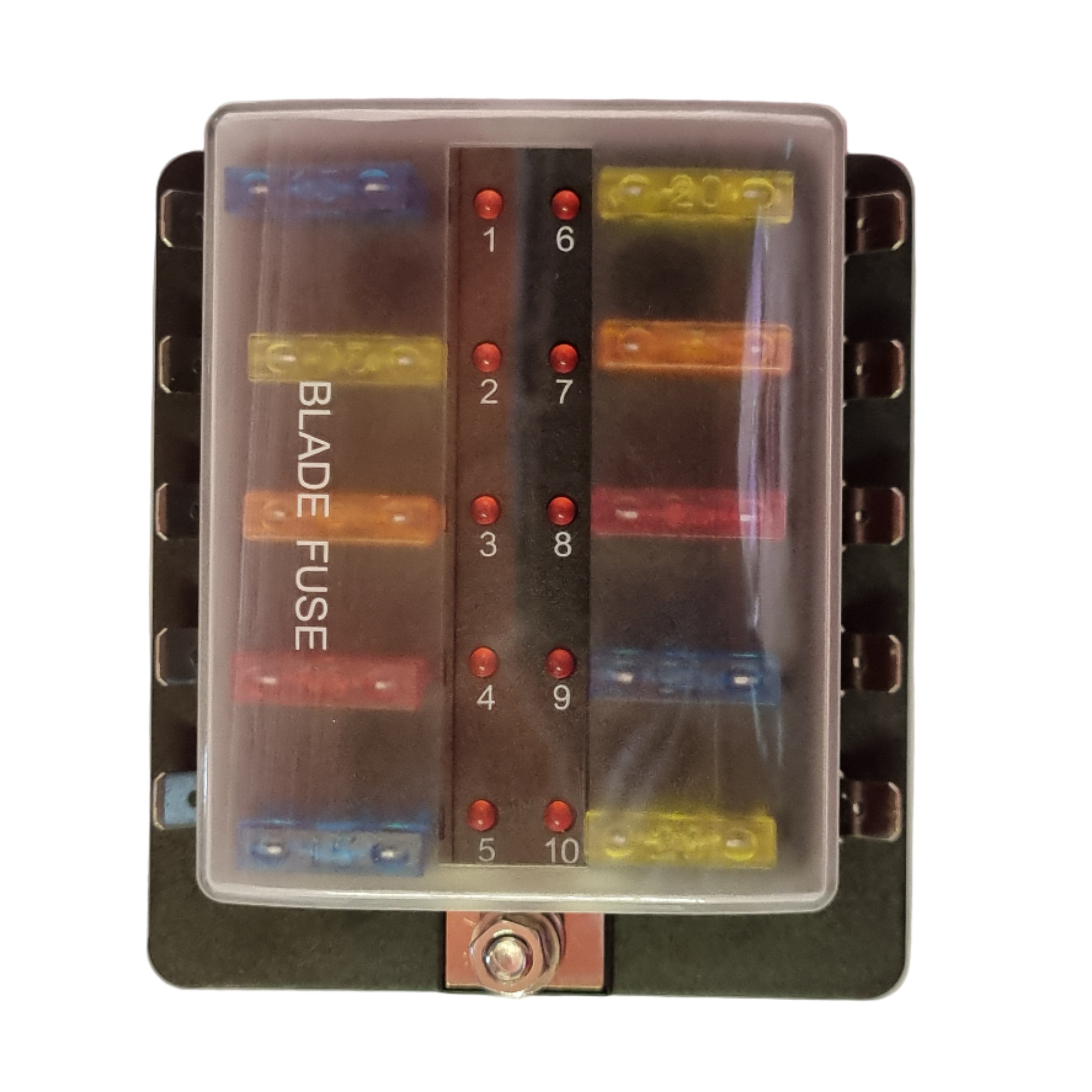

1.10 way fuse box with Fuses (5A 10A 15A 20A 30A) & Terminals.
2.Each fuse is numbered for easy installation & identification.
3.Splash and dust-proof design.
4.Sturdy and robust construction.

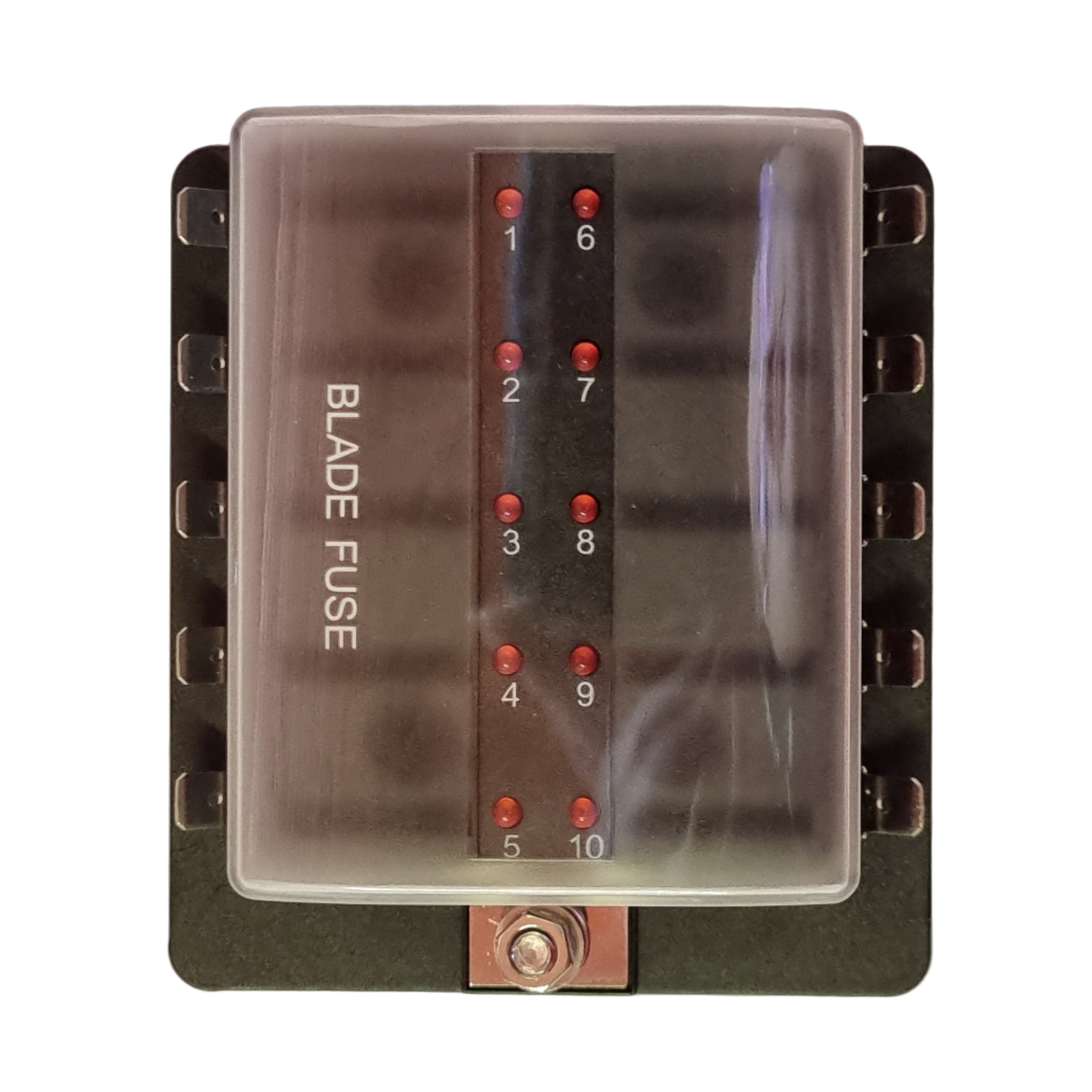

5.The clear vibration resistant protective cover is securely held in place by means of a push latch system.
6.LED fuse blown indicator-When or if a fuse blows the red LED next to the problem fuse illuminates allowing
for fast and hassle free identification of a fault.
Specification:
| Quantity of circuits / fuse slots |
10 |
| Positive common bus connection |
M5 stud (5mm bolt) |
| Output connections |
Standard 6.3mm spade terminals |
| Dimensions |
95mm x 85mm x 35mm |
| Current rating per circuit / fuse |
Up to 30 amp |
| Current rating per box |
Up to 100 amp |
| Volt rating |
12V~32V |
| Accepting fuse |
Standard blade fuse (ATO) |
| Temperature range |
-20-125(℃) |
| Type |
Electrical Systems |
| Sub-Type |
Fuses & Fuse Boxes |
