Toyota REVO Push Switch 32x20mm Blank - Optional Engraving

PLEASE READ DESCRIPTION!

Toyota REVO Push Switch 32x20mm Blank / Engraved

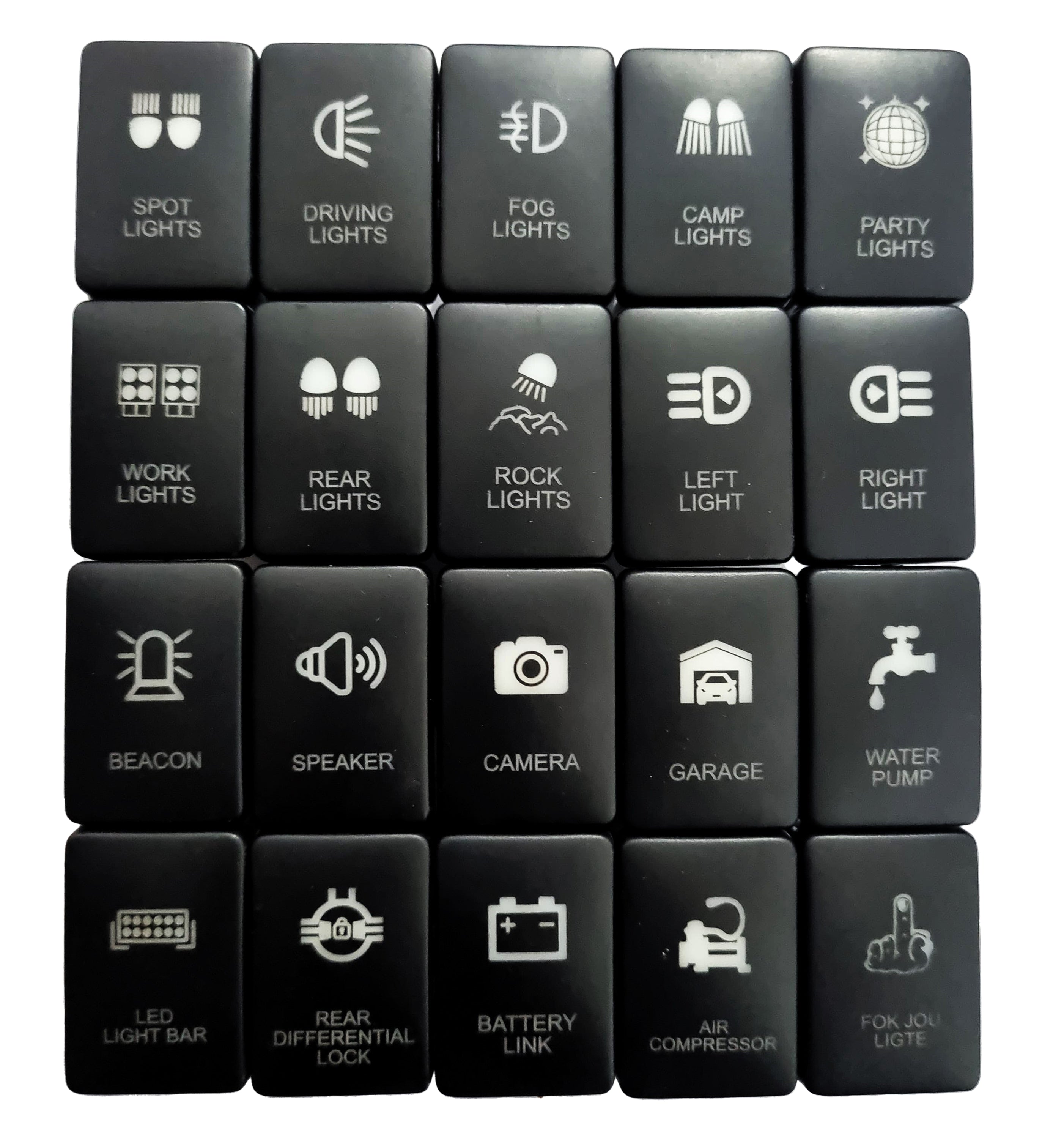

Engraving Options:

Description:

High quality single throw ON-OFF push switch. Uses the original mounting hole of the vehicle. Switch cut out required for the other accessories is about 17mm x 36 mm. These switches are an aftermarket switch that locks into your existing panel they are super easy to easy to install in less than 10 minutes.

Switches only suite the following models:

• Toyota Hilux 2015+
• Toyota Fortuner 2016+

 Rated at 3 Amp 12V.

Material: Plastic

Comes in Blue, White or Green LED Light.

Includes: x1 Switch; x1 Wiring Loom

Wiring diagram:

• Red wires should be connected to battery +,
• Black wire should be connected to battery -,
• Green wire should be connected to load +(load- connected to the battery -),
• Blue/Yellow wire can be connected to battery + or not connected(You have a different choice based on yourself).

IMPORTANT: Please make sure you have selected the desired engraving option and colour before placing order!!!

To add various options to cart select your desired engraving, colour LED and quantity; click add to cart and then repeat process to add different variant.

For wholesale enquiries, please contact sales@12vnation.co.za or 068 914 8816.
